Volcano | Hierarchical Heatmaps

Reference integrations to validate a Volcano implementation on each supported host.

Included applications

Sample	What it verifies
`androidApp`	Edge-to-edge host layout, system Back drill-up, interactive leaf selection.
`iosApp`	Compose `UIViewController` bridge, safe-area-aware host, iOS Simulator framework.
`desktopApp`	Resizable window, hover tooltip, pointer interaction.
`examples/react-demo`	React SVG integration, fast feed, drill-down, and aggregated/raw 5,000-leaf modes.
`benchmark`	Shared layout measurement with a synthetic 5,000-leaf tree.

The applications are deliberately demos, not required runtime dependencies of the library.

Android: overview and drill-down

The following captures were verified on a Galaxy S25 (SM-S938N) with the Android demo's bundled financial fixture. The overview shows groups and a legend; selecting the 전자 기술 group header opens its leaf-level heatmap with a breadcrumb and enabled Back control.

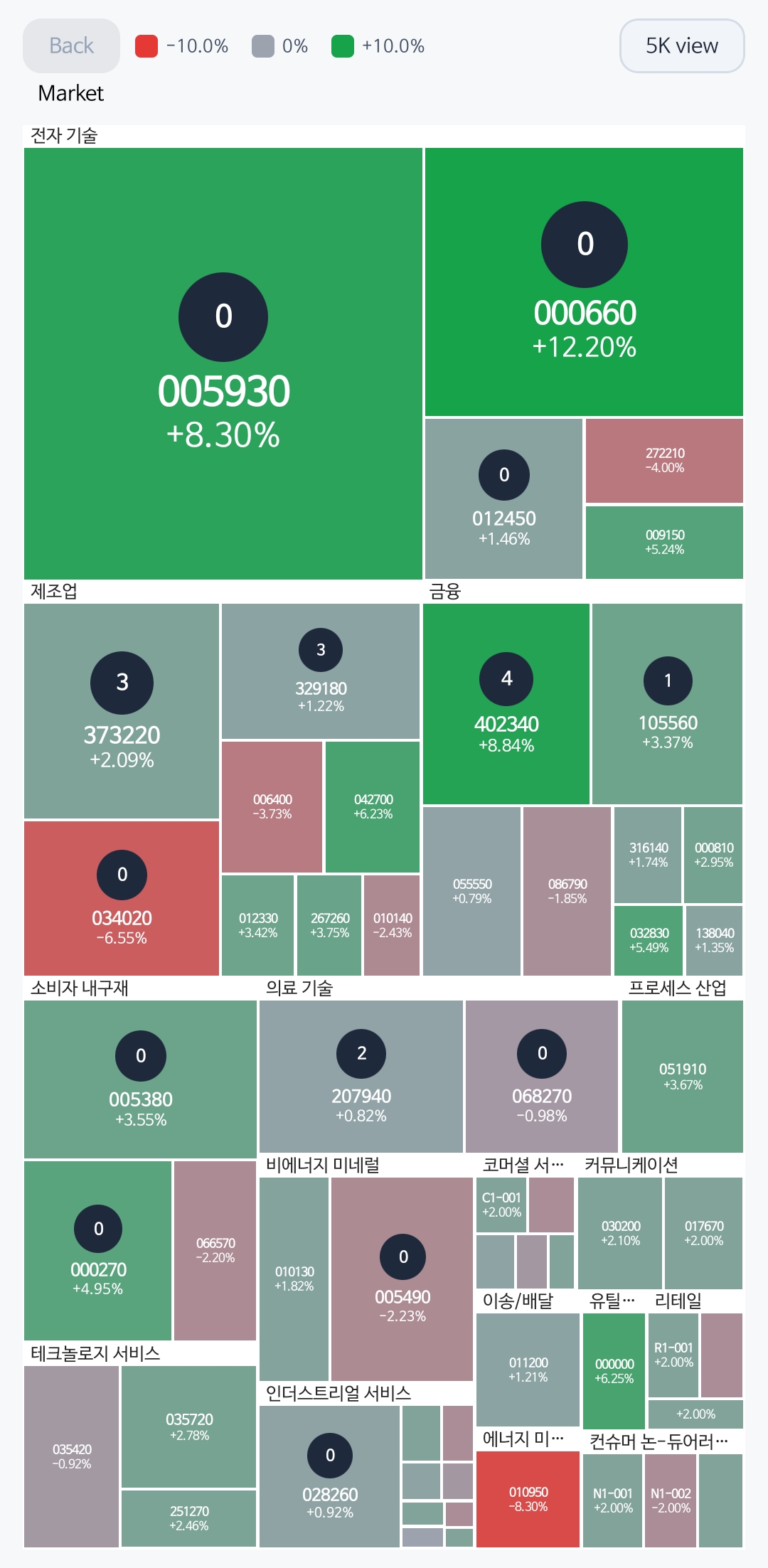

Android overview

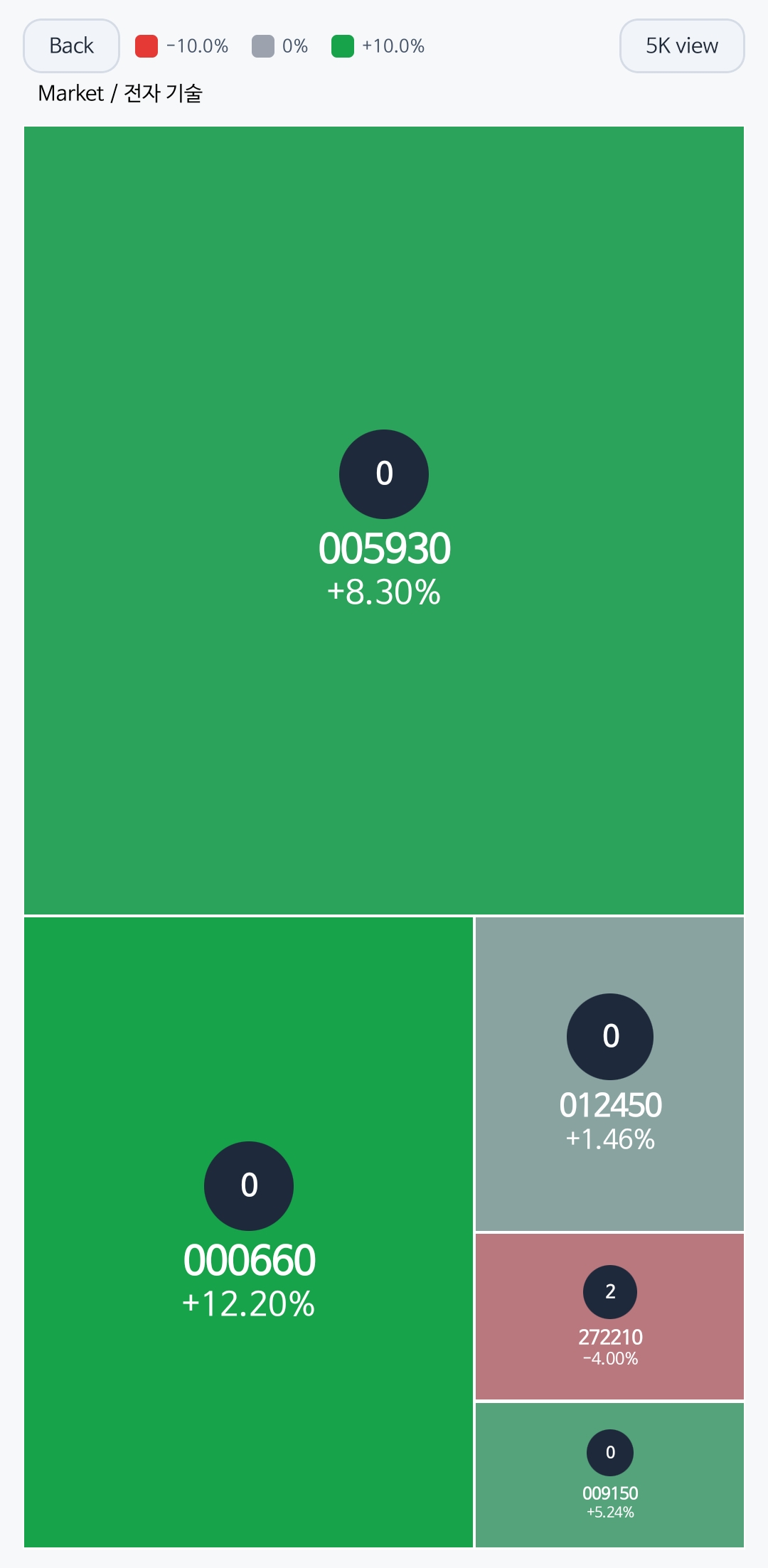

Android electronic-technology drill-down

Desktop: resizable overview and drill-down

The Desktop sample uses the same shared Heatmap API in a resizable Compose Desktop window. The overview shows sibling groups at once; the Finance drill-down preserves the breadcrumb and enables the Back control. Pointer hover is available as a separate Desktop interaction policy.

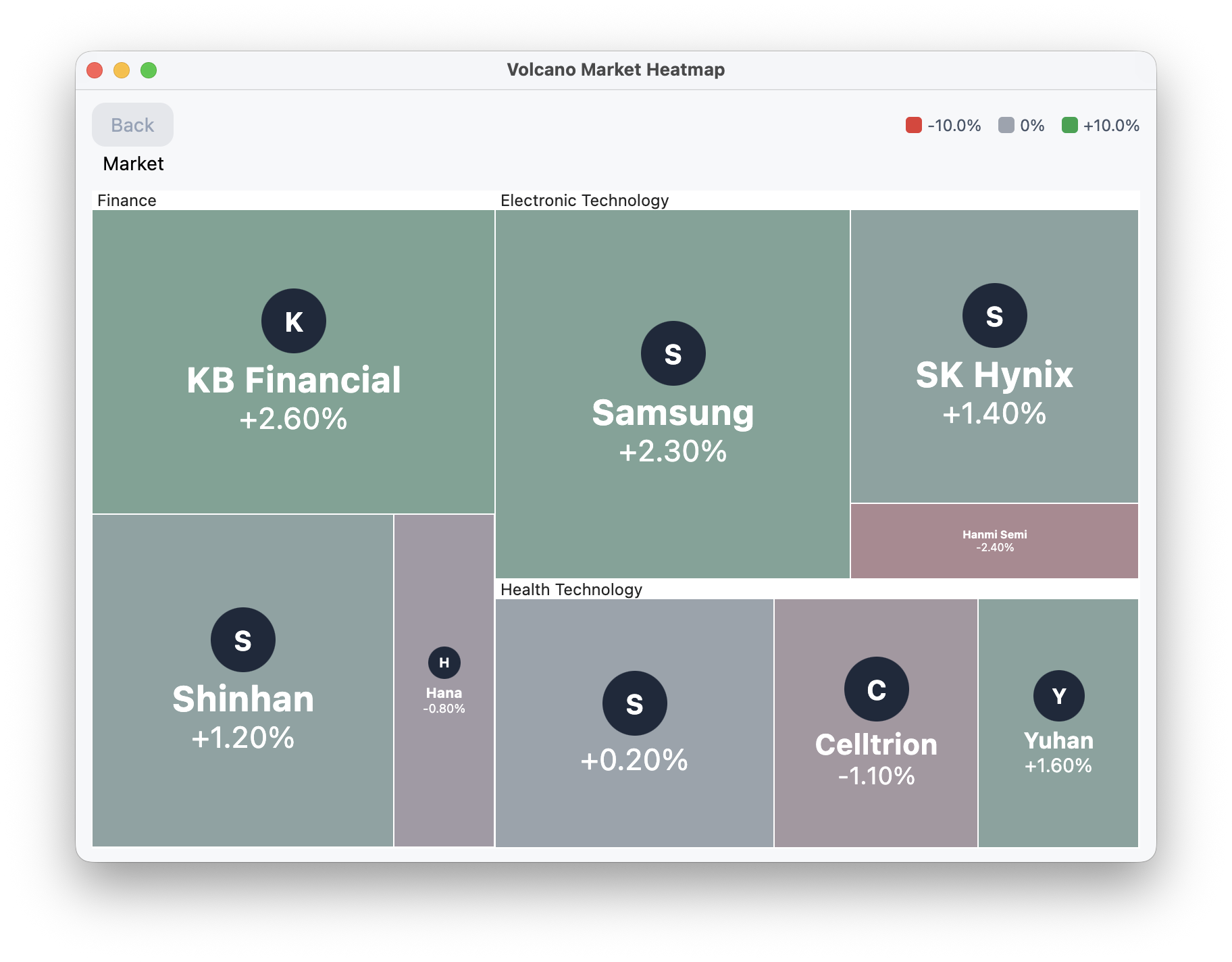

Desktop overview

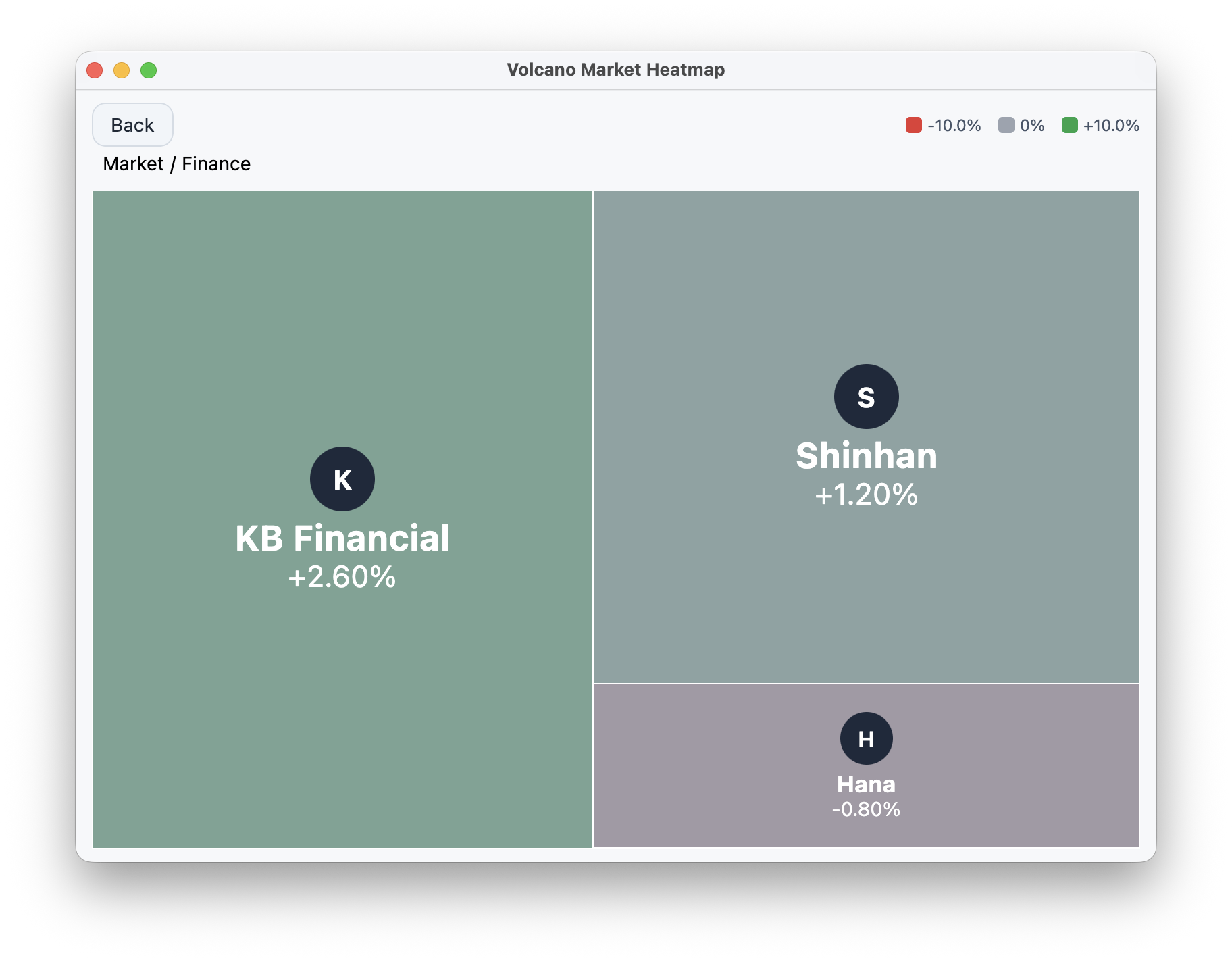

Desktop Finance drill-down

iOS: safe-area overview and drill-down

The iOS Simulator host embeds the same shared Compose UI in a UIViewController. The overview respects the iPhone safe area; Electronic Technology drill-down retains the breadcrumb and provides the same Back behavior as the other hosts.

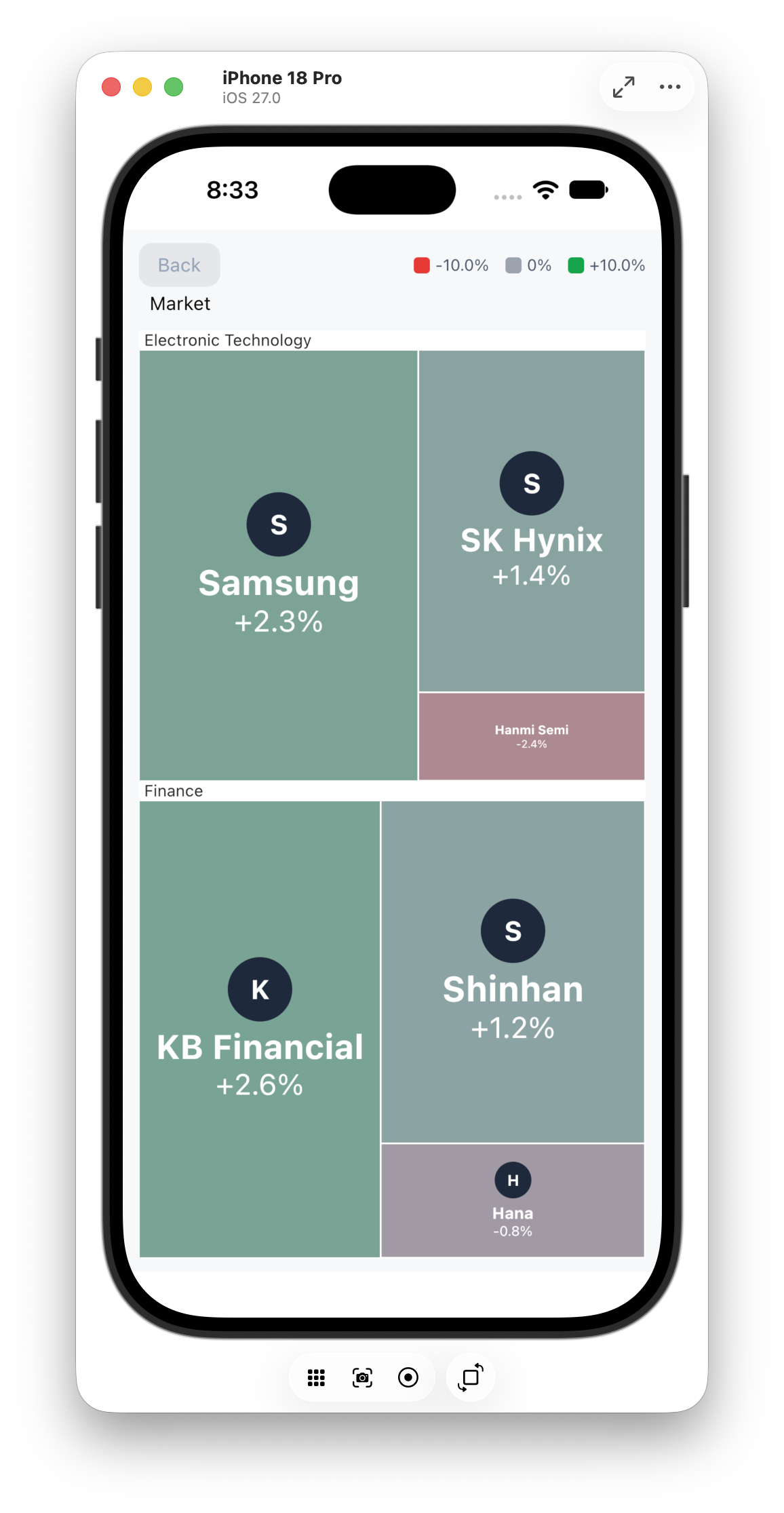

iOS overview

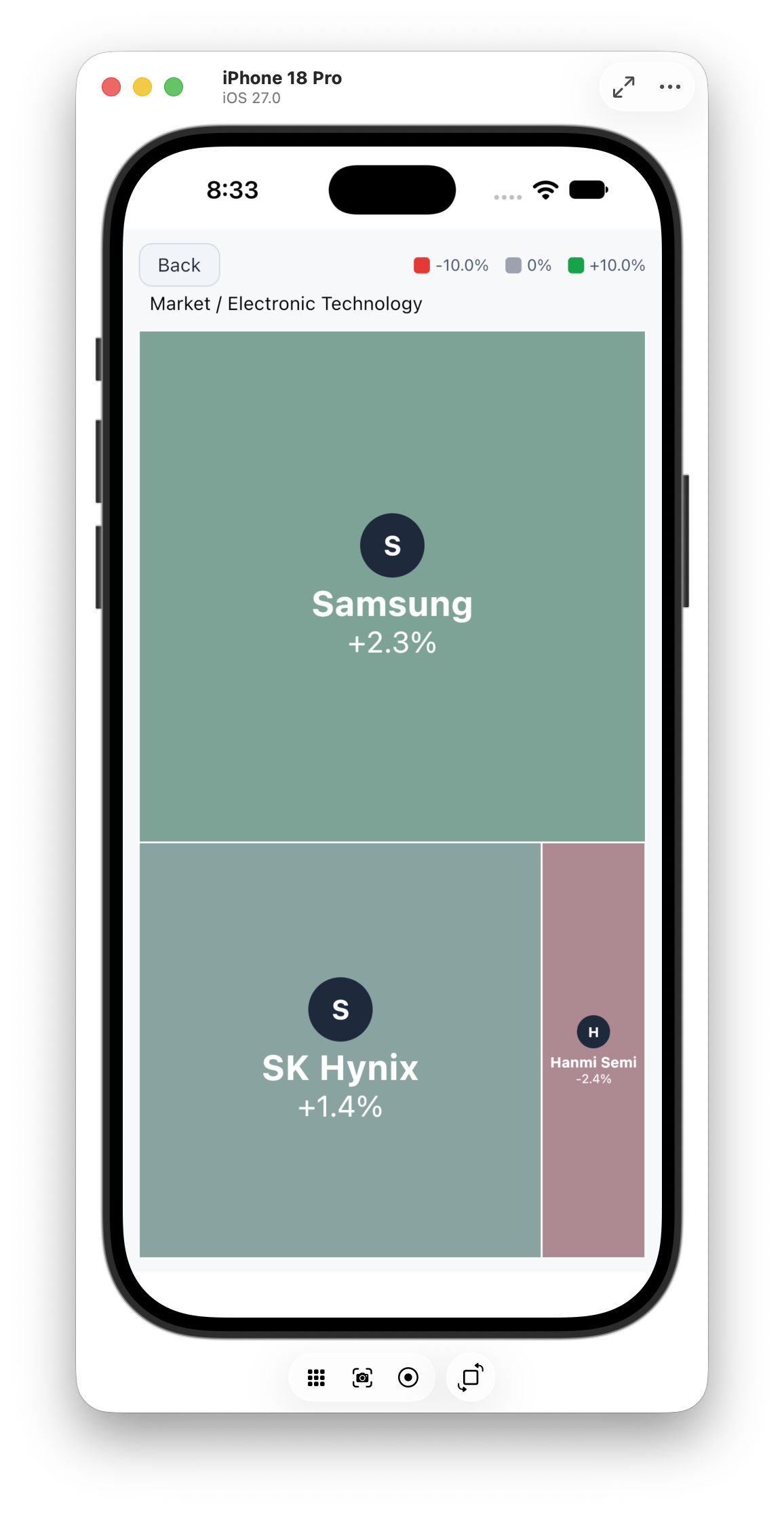

iOS electronic-technology drill-down

Capture policy

Publish screenshots or short GIFs from a verified release candidate, not hand-drawn mockups. Each capture should identify platform, library version, device/window size, dataset size, and the interaction shown. Recommended flows are: overview to group drill-down, breadcrumb/Back return, leaf detail selection, and Desktop hover tooltip.

Android, Desktop, and iOS captures are committed under documentation/content/gallery/.

React web demo

The React demo uses the same market fixture and update formula as the Desktop/iOS samples. Build the local Kotlin/JS core and npm package, then start Vite:

./gradlew :volcano:jsDevelopmentLibraryCompileSync
cd packages/volcano-react && npm ci && npm run build
cd ../../examples/react-demo && npm ci && npm run dev

Use Fast feed for 100 ms metric updates and 5K view / 5K raw for aggregated and full 5,000-leaf scenarios. This is a manual stress demo; browser frame-rate results have not been established as a release benchmark. No React screenshot is included in the gallery yet.
